*****GDKSS614*****
ORDER Chili Sauce Switch NOW!
Pay Pal
The GDKSS614 created from the 555 timer Monostable Multivibrator (one shot) circuit.
Our design needed a plus or minus car door triggering voltage so we used a 12v d.c. mini spdt relay
to negative voltage trigger the 555 at pin 2.
The 12v d.c. voltage output to the ignition connect relay 12v d.c. 10 amps from pin 3 is held
off till reset by releasing the one shot button connection.
Logic: open door, mini relay holds on the one shot connection and sends
negative trigger to 555 causing pin 3 to start output (in time) of 12v d.c. spst to ignition relay.
Ignition relay disconnects ignitions' power wire.
Only a hidden switch resets 555 by unholding the one shot button connection
and pin 3 connects ignition power wire.

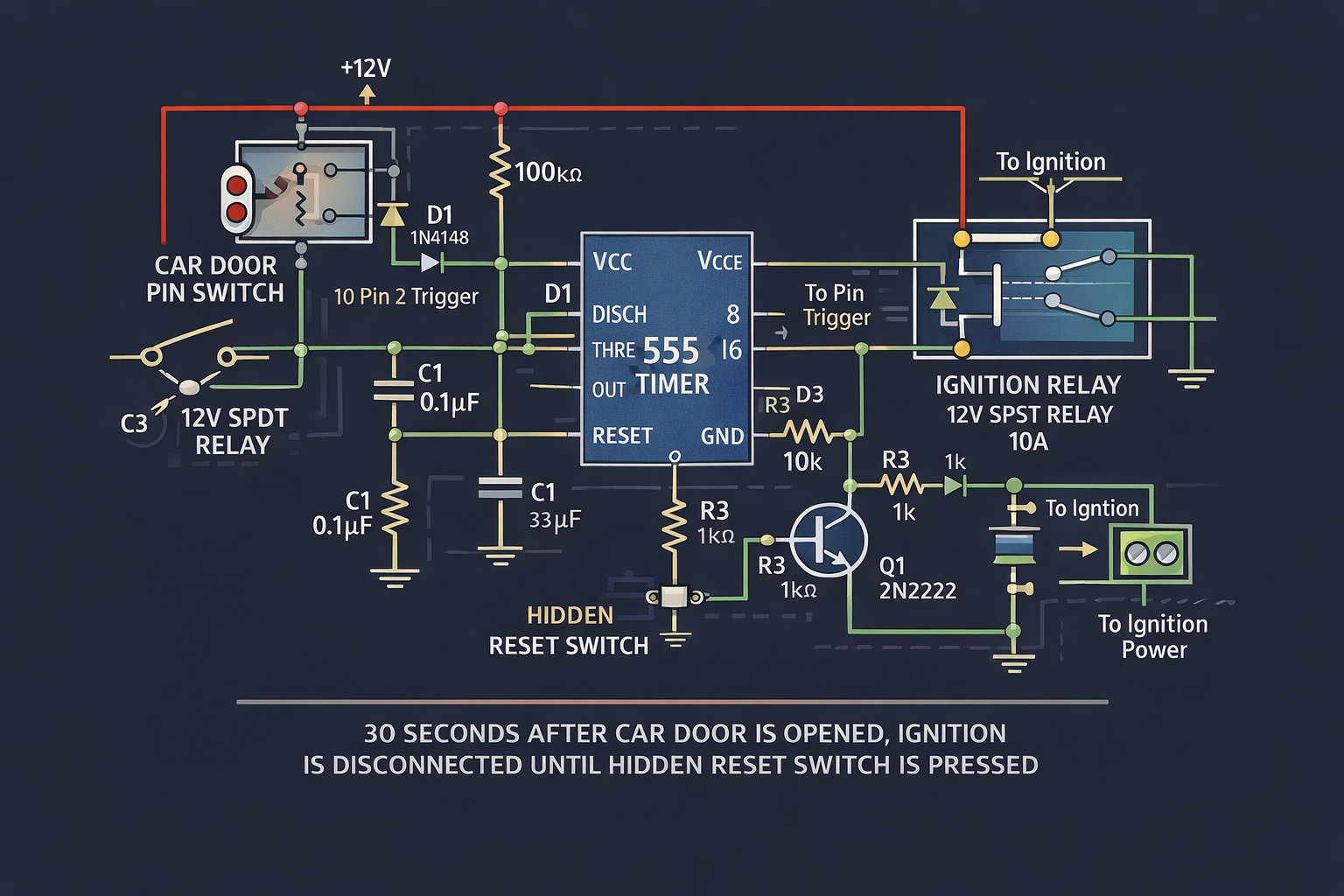

The two circuits below illustrate using the 555 timer to close a relay for a predetermined
amount of time by pressing a momentary N/O push button. The circuit on the left can be used
for long time periods where the push button can be pressed and released before the end of the
timing period. For shorter periods, a capacitor can be used to isolate the switch so that
only the initial switch closure is seen by the timer input and the switch can remain closed
for an unlimited period without effecting the output.
In the idle state, the output at pin 3 will be at ground and the relay deactivated. The trigger
input (pin 2) is held high by the 100K resistor and both capacitors are discharged. When the
button is closed, the 0.1uF cap will charge through the button and the 100K resistor which
causes the voltage at pin 2 to move low for a few milliseconds. The falling voltage at pin 2
triggers the 555 and starts the timing cycle. The output at pin 3 immediately moves up to near
the supply voltage (about 10.4 volts for a 12 volt supply) and remains at that level until the
22 uF timing capacitor charges to about 2/3 of the supply voltage (about 1 second as shown).
Most 12 volt relays will operate at 10.4 volts, if not, the supply voltage could be raised to
13.5 or so to compensate. The 555 output will supply up to 200mA of current, so the relay could
be replaced with a small lamp, doorbell, or other load that requires less than 200mA. When the
button is released, the 0.1uF capacitor discharges through the 100K and 2K resistors. The diode
across the 100K resistor prevents the voltage at pin 2 from rising above the supply voltage
when the cap discharges. The 2K resistor in series with the 22uF cap limits the discharge
current from pin 7 of the timer. This resistor may not be necessary, but it's a good idea to
limit current when discharging capacitors across switch contacts or transistors.
From Inventors workbook, Shows proper flow of logic for circuit.
Start from Door + Door - input wires. DPDT relay is to constant trigger 555 at rest and when door opens
it will unhold the oneshot then countdown and disconnect ignition power wire.
pressing unit reset opens a reed relay and unlatches the Door + Door - relay so it relaxes and
triggers 555 constantly which connects the ignition power wire.
Now,choose from a variety of cool GDK systems at the same price.
road warrior,body guard,defcon-5,logicar,co-pilot,under-cover,
over-lord,secret service,good samariton,robo-cop,gate-keeper,pro-tech,chore baby
monitron,ss60,ss61,ss614,ss619,hi-jack buster,n1z cars
First I'd like to assure the future of the GDKss614
as related to personal security using "Web cameras"
which I call,ROBO-COP.
Privacy issues and personal security is being lumped
together to form a block to the progress of such
devices.Please consider that privacy is always open
to crime. To be safe,a private person must give
away some privacy to use a body guard or an electronic
device etc.
We at GDK agree that a camera on everybody will send
a clear message to all that crime cannot ever pay.
The GDK device can turn a "Web camera" on,in the event
that the body exhibits high stress,and such stress
does occure in a crime situation.(more later)Even if thieves
know you have an anti-carjack system in your car
counter measures are ineffective against our systems
because the systems are not installed or used in the same ways
because of accessories like proximty switches,odometer trigs,
vibration trigs,cellphone trigs,reset and valet dual modes,
and fingerprint/stress i.d's on reset and valet switches.
The GDKss614 connects just like a car alarm but is not
a car alarm.
The unique thing about the GDKss614 is the unit needs
no effort on your part during a carjacking.
GDK research has shown that during a carjacking there
is no time to reach for a button to activate a system
so the GDKSS614 was designed to automatically trigger
(activate).(more later)
The activation or trigger is a positive or negative
of 12 volts from the car doors,hidden pressure switch,
and or cellular phone.(Pressure and phone type extra \$$)
The Reset is a hidden push button,voice recognition,and
or key-chain remote controll.(voice,remote extra \$$)
(more later)
The GDKss614 is built with the environmentalist approved
manufacturing techniques invented by GDK.We use no acids,
leads,rosins,fiberglass etc. yet our electronics is solid
state and repairable,thus allowing GDK to offer life-time
guarantees on the GDK line.(more later)
The GDK EXCLUSIVE VOICE RECOGNIZER RESET SYSTEM,designed
to be used in any language and re-connects your cars
vital function via saying four digits or four words.
The current Anti-carjack units on the market require the
driver to trigger the unit but the GDKss614 is automatic,
so the driver can just leave the scene of the carjacking
quickly and not seem to be resisting the carjacker.
(more later)
**For our engineers the technical jargon for the GDK devise
is that it is a customized user reset or reset one-shot
combined + or - constant or + or - single pulse activated
adjustable timed current interrupt and or timed interrupt
over-ride and current provider.AC and DC compatable.
The normal state is un-reset with power connected.
The i pin is the input.The f pin is N.O. The c pin is N.C.
Normally Open=Circuit disconnected while un-reset
Normally Closed=Circuit connected while un-reset
(more later)
GDK is currently using a manufacturing agent to push the
ss614 to new levels of marketing and legislative purpose.
Legislators are being called upon to create a bill making
mandatory all new cars connect to an Anti-carjack
devise.The insurance industry has realized they'r position
in auto security by offering discounts to they'r customers
that install an ss614,and all related fields that benefit
from the devise described at**of which there are over 20,
making the GDKss614 very attractive to corporate sponsors,
private investors,philanthropic individules,and public
inquires,such as you.(more later)
GDK electronics has improved the patent 5360997 and is now
filing another patent.GDK is submitting the GDKss614 to
industry and have received excellent response from the top
Auotmobile Manufacturers.(more later)
Investors are encouraged to Email GDK to see our Business
Plan.GDK is looking to develope more of our 20 different
uses for the GDKss614.Our Email was gdkss@ix.netcom.com
now you can just click on the "Email c.o.d.address" link
on our first page.(more later)
GDK has been negotiating with a CEO in Canada to be named
on our Business Plan.Our investors will be assured of a
Management Team fully qualified to execute the GDK Plan.
Our European Initional Public Offering (IPO) on The A.I.M.
Stock Exchange for Start-ups will be announced soon in a
Press Release and here on the GDK Homepage.(more later)
Recent R&D has made the GDKss614 function totally hands
free.(more later)
GDK sensors are made to up-grade many products on the
market today and the exclusive non-polluting manufacturing
process assures our investors there will not be any future
lawsuits.(more later)
Anti-Hostage and Anti-Kidnap Technology has arrived from
GDK,your Automotive Aftermarket supplier.(more later)
GDK will soon be matching investors with our Common Stock
offerings here on the GDK Home Page.(more later)
Our Spanish translation is now available and other
languages will be comming soon(more later)
Check out the copyrighted "Graphical interface word
processing"for the internet from GDK.(more later)
Comming soon,the exclusive GDK upholstery switch.(more
later)
GDK D.P.O.(Direct Public Offering)in construction(more
later)
Introducing the Weight Authorization Verifier W.A.V.
(more later) Automobile sensors are big news and GDK
has patented sensor drivers aka circuit up-integrators
and aka sensor to application connections.
(more later)GDK is now 10 units in one with our new
select switch and watch for the Anti-sleep unit comming
soon that actually knows if the yaw in your yawns are
too dangerous.(more later)Now if you want a private channel
get the GDK PGP encryption software.(more later)
The PNGV Program,ISO9000 and QS100 ect.,is recognized by
the big three automakers as vital to our countries future and GDK
is fully involved.(more later)The founder of GDK is currently
doing speaking engagements called "Maximum Dividends".These lectures
inform investors on the best investments to gain the most money.
(more later)The new safety feature on cars that keeps headlights on
during the day can run your battery dry if it isn't charging right.
GDK's "Headlight Minder" can help.(more later)The gradually decreasing
power feature of Delco Electronics Anti-Carjack system is adopted
by GDK(more later)Criminals will always try to be a step ahead
of theft deterrent systems.The GDKss614 is designed to stay one step
ahead of carjackers by our unique installation instructions and
automatic triggering system.(more later)GDK realizes that Anti-
Carjack systems can cause thieves to take hostages for the
purpose of over-riding Anti-carjack systems if the car dies while
it is being stolen,but GDK has answered that problem,and Ford
Motor Company agrees,that the Anti-Hostage system from GDK will
end carjacking.The Anti-Hostage System is the only way available
to stop and catch a kidnapper.The A-H system is run by a computer
program written by Gerald D.Krug and the outside components are
designed to fit in easily with the automobiles interior.
Enter the car and begin driving.If others become detected in seats
a Verify/Capture/Unanimous release takes place.If V/C/U isn't done
in time the car gradually loses power and stops and all occupants
will be detained,Police called
automatically.
GDK hopes you can understand we will not give out more details
about the A-H System Verify/Capture/Unanimous release process.
(more later)The GDK Business plan is back
Readme
(more later)GDK introduces the "REEL REMINDER" the
fishermans automatic line tensioner and bait check alarm.
(more later)To reset the ss614 with your remote alarm system
from inside the car use the chirp of the alarm set to a 12v
relay to give neg. to the ss614 reset push button or get the
GDK arming led light signal remote alarm for stealth resetting.
(more later)GDK announces the break only stop accessory.This
accessory,to the ss614,delays the ss614 from stopping your car
until a break is pressed.(more later)Hey!GDK fans NOW...
if a timer isn't your idea of an effective delay then how
about the NEW...Speedometer sensor for the GDKss614.
adjustable to as low as 1/20 of a mile before stopping
your car.(more later)GDK locator system is so easy to use,just
call police and report carjacking then call GDK and give us
the police dept. phone number and ss614 serial number and
police crime report case number.(more later)Remember when
calling GDK before our grand opening,ring 20 times.
(more later)Now!remote resetting of the ss614 with alarm or
without.Check out our super low prices.(more later)Remember
don't put your keys on to your arm/disarm remote key chain
controller when used to reset your gdkss614.(more later)If you
don't feel good about disabled systems on your car then use
a Pain Generator interior siren.(more later)Imagine calling your
car and having it stop automatically,well you can with the GDK
P.I.T.stop card system.(more later)Due to the success of
tracking systems,thieves park stolen cars legally and return
days later to finish the theft.You won't have to worry about
thieves hiding your car soon after it is hi-jacked,that means
with the ss614,recovering your car is easy.Thieves don't
have time to legally park your car.(more later)The floor mat
pressure switch to over-ride the door triggers makes the
ss614 a dream to operate.(more later)Automobile electrical
certification AEC does not account for future lawsuits based
on pollution.GDK does not build with polluting processes.
GDK hand crafts its systems and insures its products.
(more later)The instant kill GDKss60 is 99.95 and the 3 minute
factory set timer GDKss61 is 129.95.(more later)
GDK has a hidden audio count down warning voice for added value.
(more later)If you can't put your car in neutral,reset GDK,re-start your
car,and put it in drive while your driving,we don't recommend purchase.
(more later)Is your security guard asleep at his post?Then use the
GDK guard report recorder.Random intentional beeps must be noted on the
guard report then check if it matches the Guard report recorders printout.
(more later)A kidnapping becomes a hostage situation when the thief has
run out of options for escape.The GDK series 60,61,614 stops the kidnapping
so in turn stops a potential hostage situation.(more later)
Get free assessments of your security needs call 1-877-619-2277(more later)
The T.R.A.P. system used by police to lock carjackers in a stolen
vehicle has made carjackers flee a stopped car so they wont look for
ways to defeat the system.(more later)Air bags have saved 3000 lives
from 2.4 million deploys and the ss614 saved a car on its first test
deploy.(more later)If you think you may have a counterfit AT&T
pressure csswitch please register with the GDK recall program so you can
enjoy product liability coverage.(more later)GDK does not suggest using
a valet toggle to over-ride any system.(more later)Use the AT&T pressure
csswitch to block ignition 2 on all cars.(more later)Tap reset and kick trigger
in "Panic mode" instantly kills the engine unless used to kill the electric fuel
pump.(more later)
Simply lift constant pressure on the csswitch when it is used as a
valet,examples,heavy object,clamp,magnet and the alarm stays off.
(more later)
To create this electronic device using a **555 timer** to control a **normally open or closed relay** with a hidden reset switch, here is a list of parts you would typically need:
### Components List
1. **555 Timer IC**: Acts as the core timer for the countdown. It will control the delay to allow temporary theft protection.
2. **Relay Module (Normally Closed - NC)**: 12V relay to control the output power. A normally closed relay will maintain the connection until triggered by the 555 timer to open, cutting off the power.
3. **Resistors**:
- **R1**: Sets up part of the timer configuration; the value of R1 helps determine the countdown duration.
- **R2**: Works with R1 and C1 to set the timing interval for the countdown.
- **R3**: Connected to the ground to help stabilize the timer circuit.
4. **Capacitor (C1)**: Sets the timing duration with R1 and R2. The value of C1, combined with R1 and R2, determines how long the relay stays open before resetting.
5. **Diode (D1)**: Provides protection by preventing back EMF when the relay is switched off. This is essential for relay longevity and circuit safety. Use a **1N4007 diode** or equivalent.
6. **Push Button (Hidden Reset Switch)**: Hidden switch that triggers the reset pin of the 555 timer to restart the countdown.
7. **Power Supply (12V DC)**: Provides the necessary voltage for the 555 timer and relay module to operate.
### How the Parts Work Together:
1. **Power Supply**: Provides +12V power to the circuit, which will power the 555 timer and relay module.
2. **555 Timer Configuration**: In monostable mode, the 555 timer will begin timing when triggered (for example, by opening a door). This timing can be adjusted with R1, R2, and C1.
3. **Relay Control**: The 555 timer controls the relay, which is normally closed. When the timer’s output goes high, it opens the relay momentarily, allowing temporary interruption of the load’s power.
4. **Diode (D1)**: Placed across the relay coil to prevent damage from voltage spikes (back EMF) when the relay switches states.
5. **Hidden Reset Switch**: Resets the circuit back to its initial state after the countdown is completed.
---
### Example Values for Timing Components (R1, R2, and C1):
- **R1**: 10k ohms
- **R2**: 100k ohms
- **C1**: 1000uF (adjust based on desired countdown duration)
These values are a starting point and can be adjusted based on how long you want the countdown delay to be.
